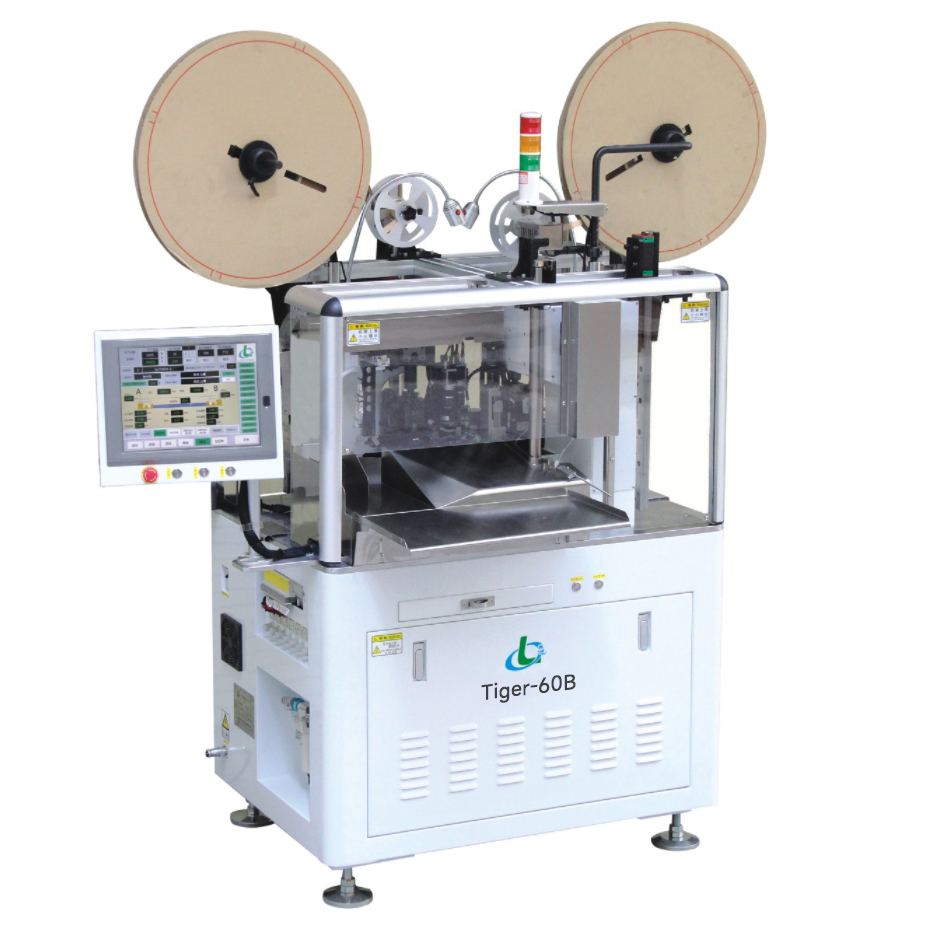

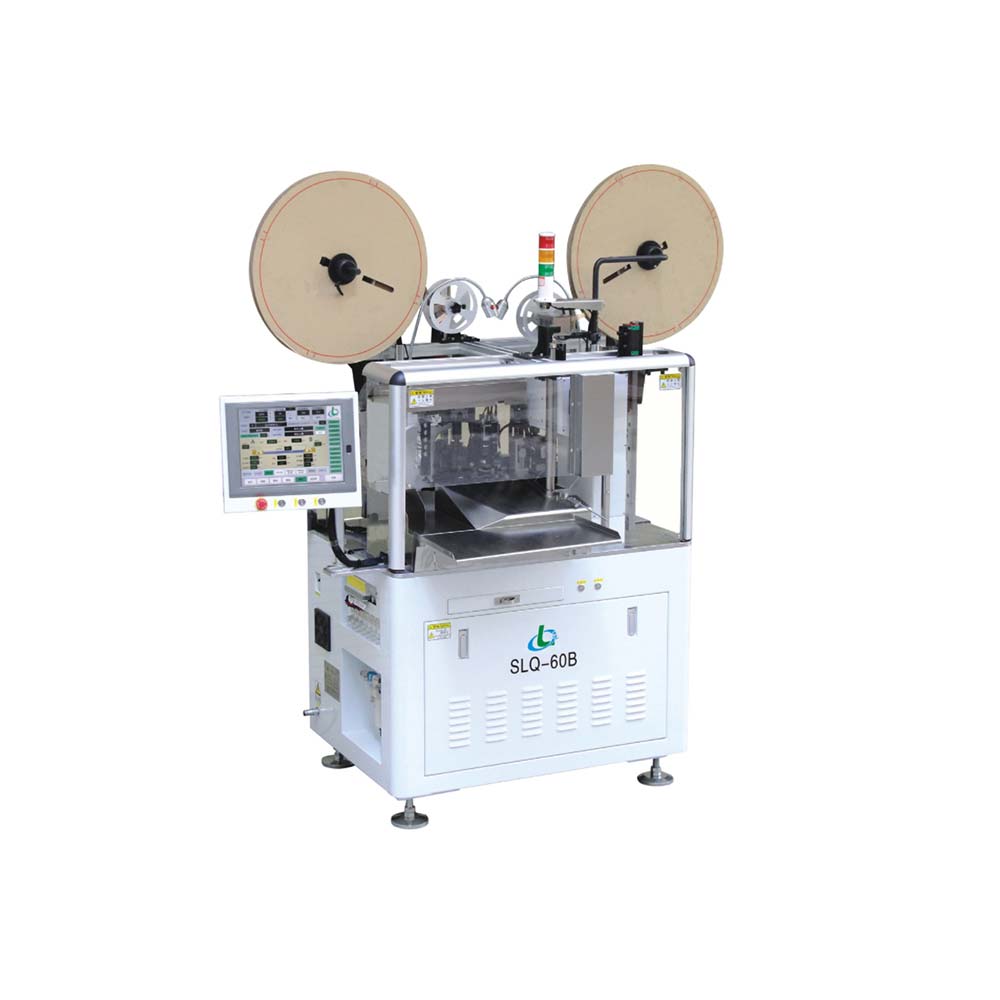

TIGER-60B
Equipment Configuration
With the German high pixel CCD inspection system.
Module (THK), Electric engine (YASKAWA), Pneumatic mould(SMC) sensor(OMRON), CCD Camera(Basler), Reducer(Nidec-Shimpo), PLC(Keyence), Servo drive(Mitsubishi).
The maximum productivity can reach to 3200pcs/hr.
Equipment Function
Double camera CCD visual inspection.
CFM(Crimping Force Monitoring) sensor integrated with every crimping module.
Scrap selecting & unloading, foolproof scrap cutting unit.
Adjust the crimping height on HMI.
Technical Parameters
| Wire Cross-section | 0.13mm² - 2.5mm² (AWG26-AWG13) | Cutting Precision | ±(0.2% * L+ 1.0 mm) |
| Min. Length | 35mm | Max. Length | 4000mm (The shortest cut length can be customized according to specific needs.) |
| Stripping Length | A：0-15mm B：0-17mm | Compressed-air Connection | 0.5 Mpa |
| Power Source | 220V / Single-phase / 50 Hz | Power | 3.5 kW |
| PPH | Both-end crimping about 2200pcs/hr(Theproductivity will be different according tothe wire processing length) | QC Devices | Air pressure declining detection, Wirepresence, Wire overload, Terminal presence,Terminal overload, Stripping CCD inspection,Terminal crimping CCD inspection, Crimpingforce detection(CFM) |
| Dimension(mm) | L1510 * W980 * H1780mm | Weight | ≈600kg |
| Functions | Pre-feeding, Wire feeding, Fixed-lengthcutting, Stripping/Half stripping, Both-endterminal crimping | QC Contents | Wire presence/absence, wire overload, terminal presence/absence, terminal overload, wire stripping visual inspection, terminal crimping visual inspection, crimping force detection |
| Crimping Capacity | 1 T conditions for achieving maximumcrimping force: maximum motor torqueadopted and specific settings applied. | ||
| Parameters are indicative and may vary by product type. Our engineering team will review your specific needs and ensure the best solution. | |||
