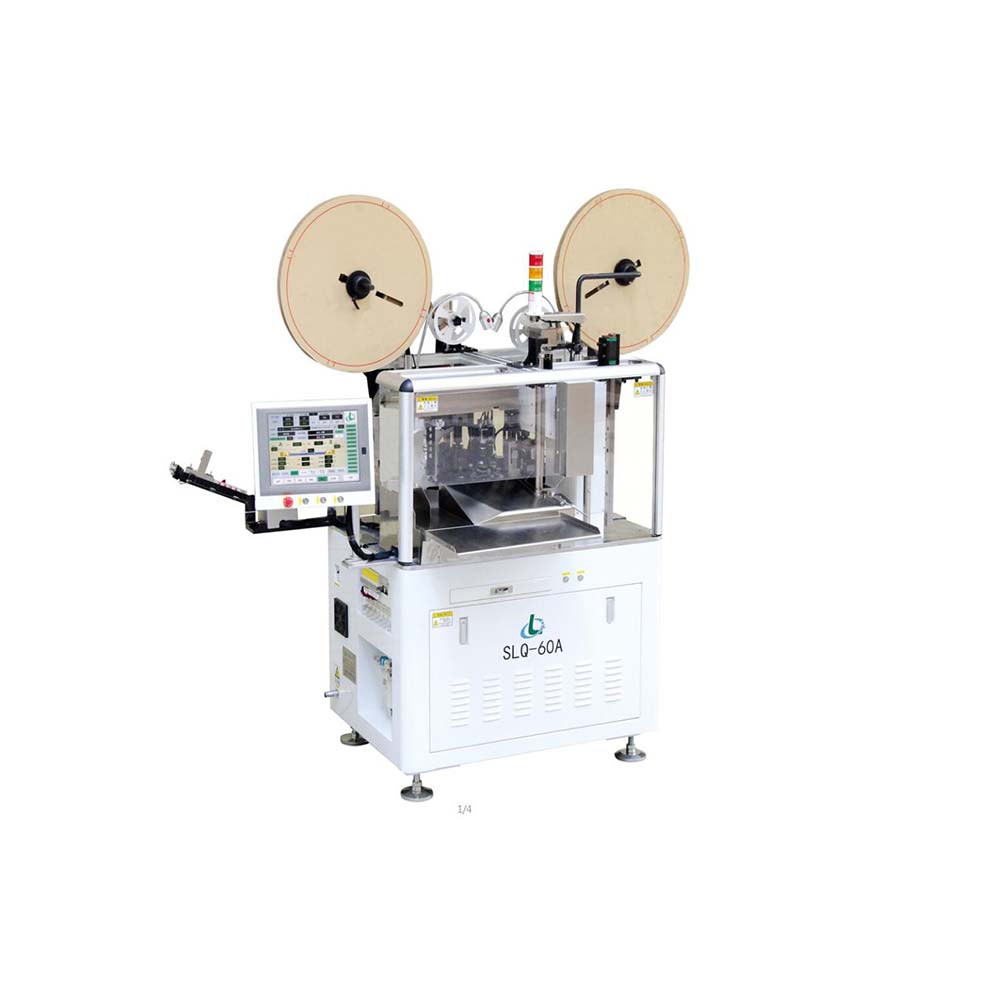

Equipment Configuration

With the German high pixel CCD inspection system.

Module (THK), Electric engine (YASKAWA), Pneumatic mould(SMC) sensor(OMRON), CCD Camera(Basler), Reducer(Nidec-Shimpo), PLC(Keyence), Servo drive(Mitsubishi).

The maximum productivity can reach to 3200pcs/hr.

Equipment Function

Double camera CCD visual inspection.

CFM(Crimping Force Monitoring) sensor integrated with every crimping module.

Scrap selecting & unloading, foolproof scrap cutting unit.

Adjust the crimping height on HMI.

Technical Parameters

Wire SizeAWG#30-#14Power3.5KW
Power SourceSingle-phase 220v/50HZCompressed Air Connection0.5Mpa
Stripping LengthA: 0-15.0mm
B: 0-17.0mm
Stripping DepthMaximum 3mm
Cutting Length35-9999mm(The shortest cut length can be customized according to specific needs)WeightAbout 600KG
Drive ModeMitsubishi servo drive, IPCCutting PrecisionCutting length*0.02mm
CapacityBoth-end crimping about 3200pcs/hr(The productivity will be slightly different according to the wire processing length)Equipment SizeL1510*W980*H1780mm(Extend part not contained)
Crimping Capacity2 TON presser two sets mute specificationsMould Assembly TypeAS40, AS42, AE30(Pneumatic mould can be customized)
FunctionPre-feeding, Wire feeding, Fixed-length cutting, Stripping/Half stripping, Both-end terminal crimpingDetection DeviceAir pressure declining detection, Wire presence, Wire overload, Terminal presence, Terminal overload, Stripping CCD inspection, Terminal crimping CCD inspection, Crimping force detection(CFM)
