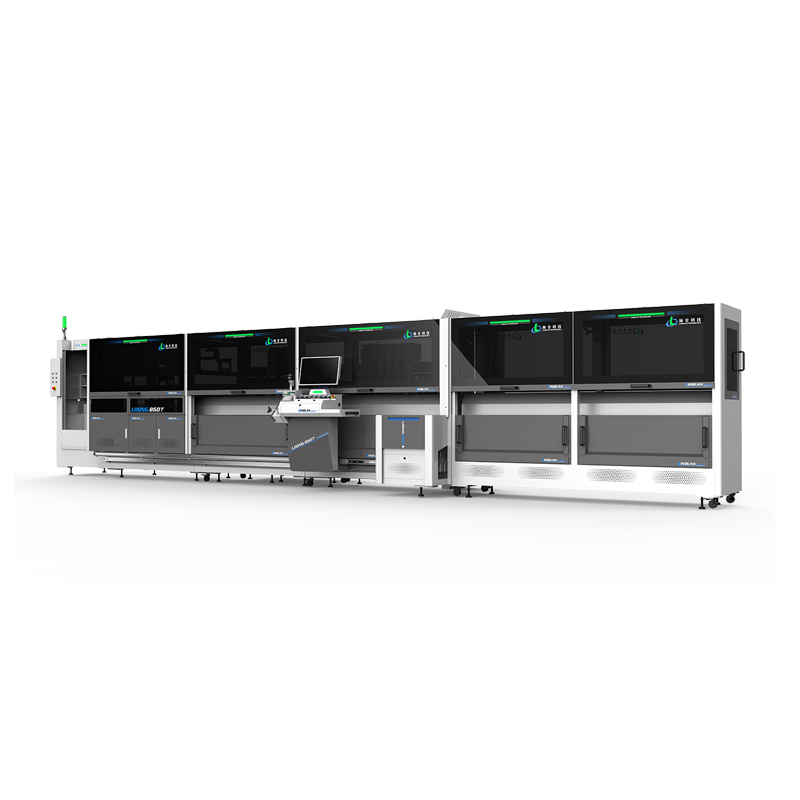

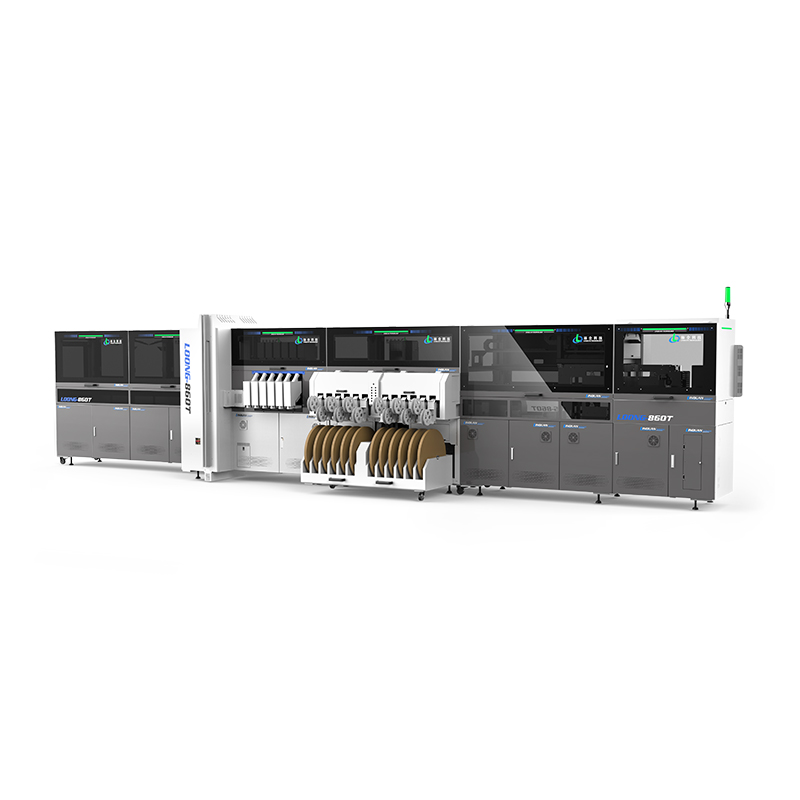

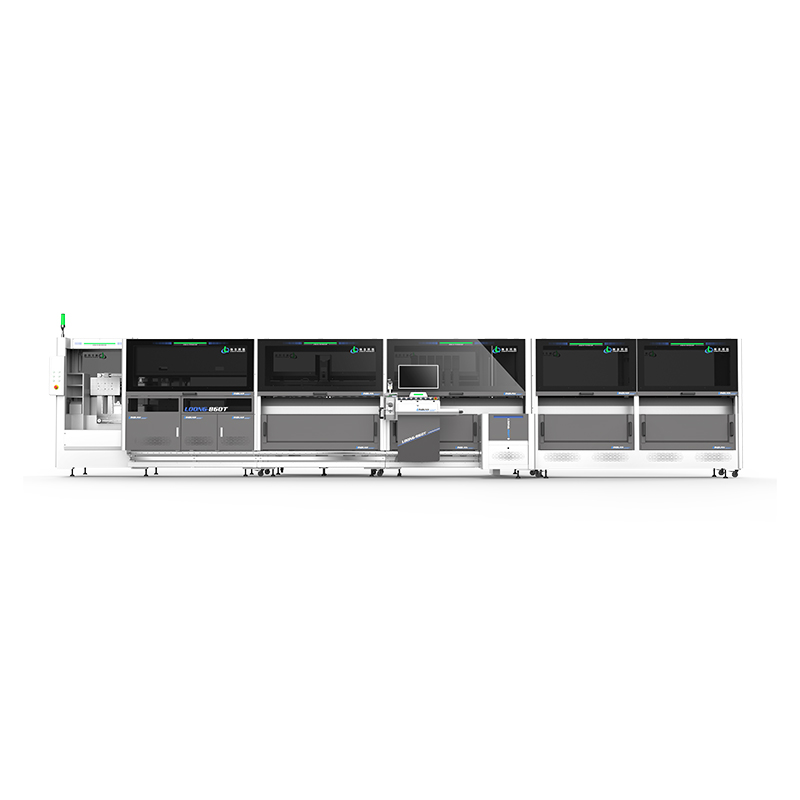

LOONG-860T
Our latest model, the Loong-860T, has all the advantages of the new generation of machines. It provides process safety and stability for the fully automated production of twisted pair cables. This product comes with a point braiding unit for integrated braiding of bare wire ends, which can simultaneously splice two single wires into a UTP cable (unshielded twisted pair). The expandable crimping head and rubber shell feeding mode, modular structure can provide maximum flexibility.
Technical Parameters
| Wire Cross-section | 0.13mm²-4.0mm²(AWG26-11) | Min. Length | 200mm |
| Cutting Precision | ±(0.2% *L+ 1.0 mm) | Max. Length | 9999mm |
| Stripping Length | 0~25.00mm±0.1(feed blade precise to 0.01mm) | Crimping Capacity | 3 T conditions for achieving maximum crimping force： maximum motor torque adopted and specific settings applied |
| Twisting Min. Length | 450mm | Twisting Max. Length | 8000mm |
| Opening Size | 30-70mm | Twisted Pitch | 5~80mm |
| CT | single wire 2.2-3s twisting wire 13s | Insertion Pass Rate ( calculated by cavity ) | 99.95% |
| Wire Feed-in Speed | 1 Min. | Wire Selector | max. 50 wires |
| Wire Storage | 30+10 storage sites | Fixture Pallet Dimension(mm) | 430mm * 260mm(capacity: approx. 30 connectors） |
| Power Source | 220V / 3 Phase / 50-60 Hz 380V / 3 Phase / 50-60 Hz | Power | 45KW |
| Noise Level | ≤75dB | Compressed-air Connection | 0.5~0.7Mpa |

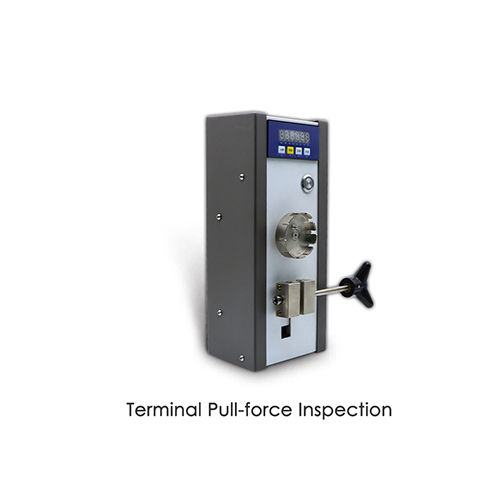

| QC Contents | wire overload, terminal overload, stripping visual inspection, visual inspection of the number of core wires, terminal crimping visual inspection, crimping force inspection, insertion force inspection, pull back force inspection, ACD injury core wire inspection, visual inspeciton of terminal angle | Production Data Traceability | wire length, stripping length, core wire inspection photo, terminal appearance inspection photo, crimping force data, insertion force data, pull-back force data, product processing information |
| Raw Material Error-proofing | Error proofing of wire, seal, terminal, applicator, connector by code scanning | Functions | wire presence, terminal presence, automatic feeding, fixed length cutting, both-end stripping, both-end crimping, twisting two wires, both-end inserting, automatic adjustment of crimping height, unloading defective products through CCD inspection, terminal NG cutting, scan code to match, production data storage |
| Dimension(mm) | L13260*W2110*H2150 | Weight | ≈8000KG |
The biggest feature and innovation of the Loong-860T is its fully automated plug-in machine with twisted wire insertion function. By analyzing the twisting and adjusting the forces generated during the movement of the twisting upper end, the consistency of the twisting can be ensured. The machine has a high output, with two wires being processed in parallel, and the entire process is divided into two major steps, each synchronized in the best way possible.
High speed mass production capability.
Reliable machine performance.
User friendly HMI.
Flexible modular design.
Short changeover time.
Long time data traceability.
MES Traceabilitys.
Outstanding quality control: CCD inspection & CFM sensor.
Excellent compatibility.
Compatible with third-party data (such as MES, SCADA) interface.
Real-time equipment performance and process data.
Easy-to-manage part number list.
Standardized and modular design, such as: standard Housing insertion, crimping, CCD modules.

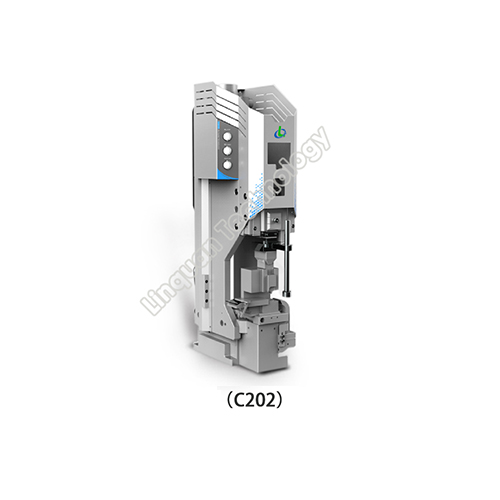

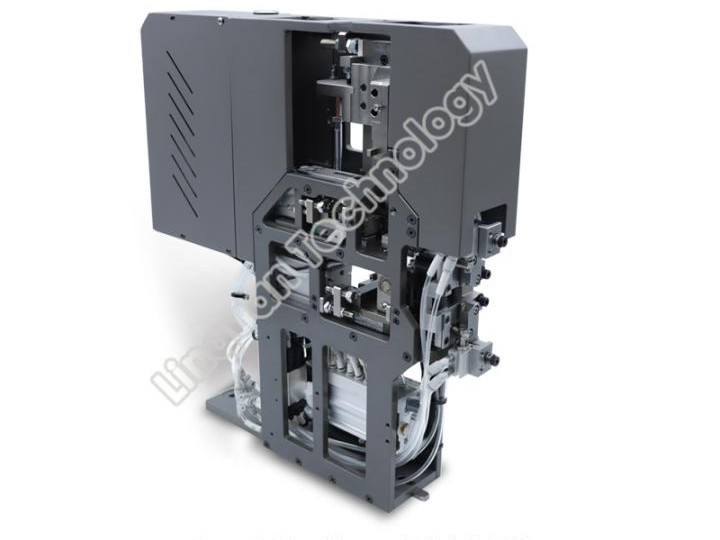

Crimping Module (C202)
Servo-controlled press assures best crimping result.
Integrated with independent crimping force monitoring unit.
Maximum 12 crimping stations could be applied.
Crimping parameters, e.g., crimping height, could be set, adjusted and displayed at HMI.
Wire Wall
Three-dimensional cable storage system saves factory floor space dramatically.
Wire Selector
Compatible for maximum 50 different wires works synchronously.
Tool-free quick guide tube changeover 0.13-4mm²(AWG26-11).
Cutting and Stripping Module
Applying double high-speed blades(V-shape/R-angle blade).
Adjust stripping data with HMI to achieve ultra precision and clean stripping.
Cutting & stripping variety of cross-section wires without complicate change-over step.
Untwisting Module
Remove wire twists.
Decline scrap rate.

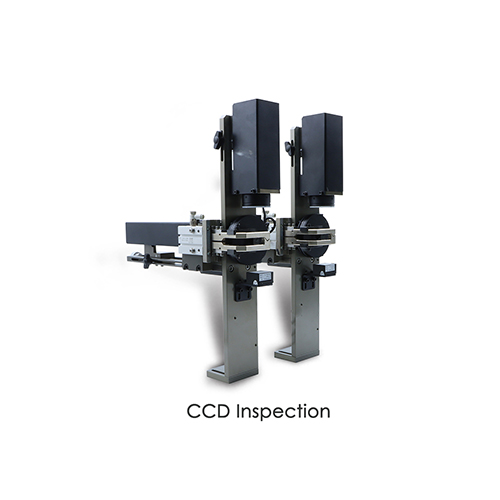

CCD Visual Inspection (TDVM-1)
Integrated QC module, efficient quality monitoring.
Stripping, crimping and center conductor inspection.
Real-time monitoring producing process.
In time detecting scraps.

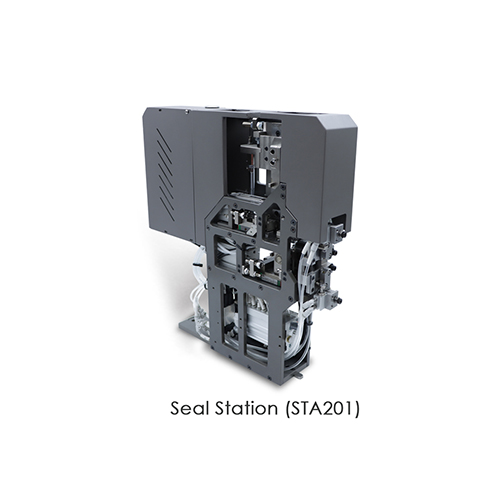

Seal Station (STA201)
Max 6 seal stations configuration.
Latest smaller, optimized module design for versatile machine configuration.

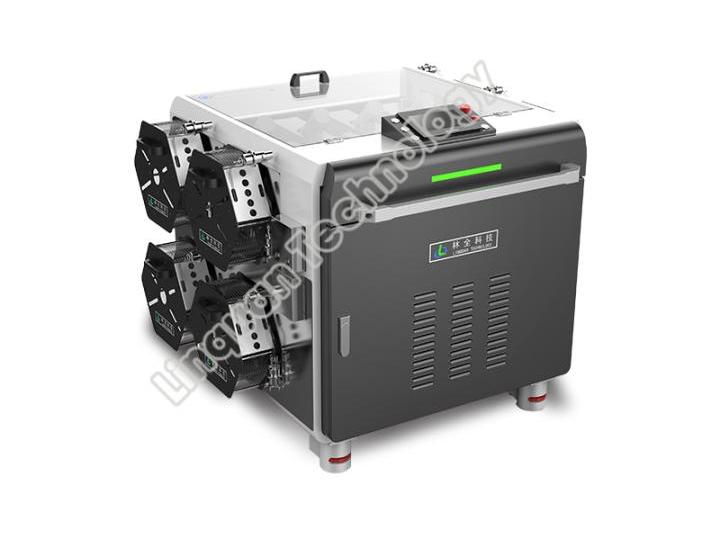

Centralized Pre-feeding Module S201
Innovative centralized seal feeding technology, efficiency and capital investment of sealing to wire have been significantly optimized.

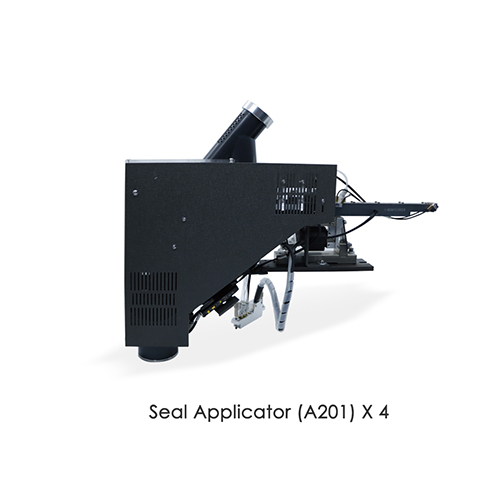

Centralized pre-feeding module S201 makes maximum 4 seal applicators A201 together with maximum 8 magazines work synchronously.
Creative seal magazine model M201 design achieves compact dimensions of seal feeder and change-over time optimization.
Wire Storage Unit
30 storage positions.
Optimize insertion sequence: from left to right, button to top.
Breakthrough insertion limitations.
Special design for sophisticate wire harnesses.
Insertion Module
Dual insertion clamps structure, ensuring insertion accuracy, stability and efficiency.
Segmented insertion process, integrated insertion and pull-back force detection, declining scrap rate.
Plate-loop Conveying Connector Loading Module
Equipped with two conveying plates, efficient connector reloading.
Versatile connectors loading synchronously.
Enable sequence product producing.
Quick & easy manual final product unloading.
