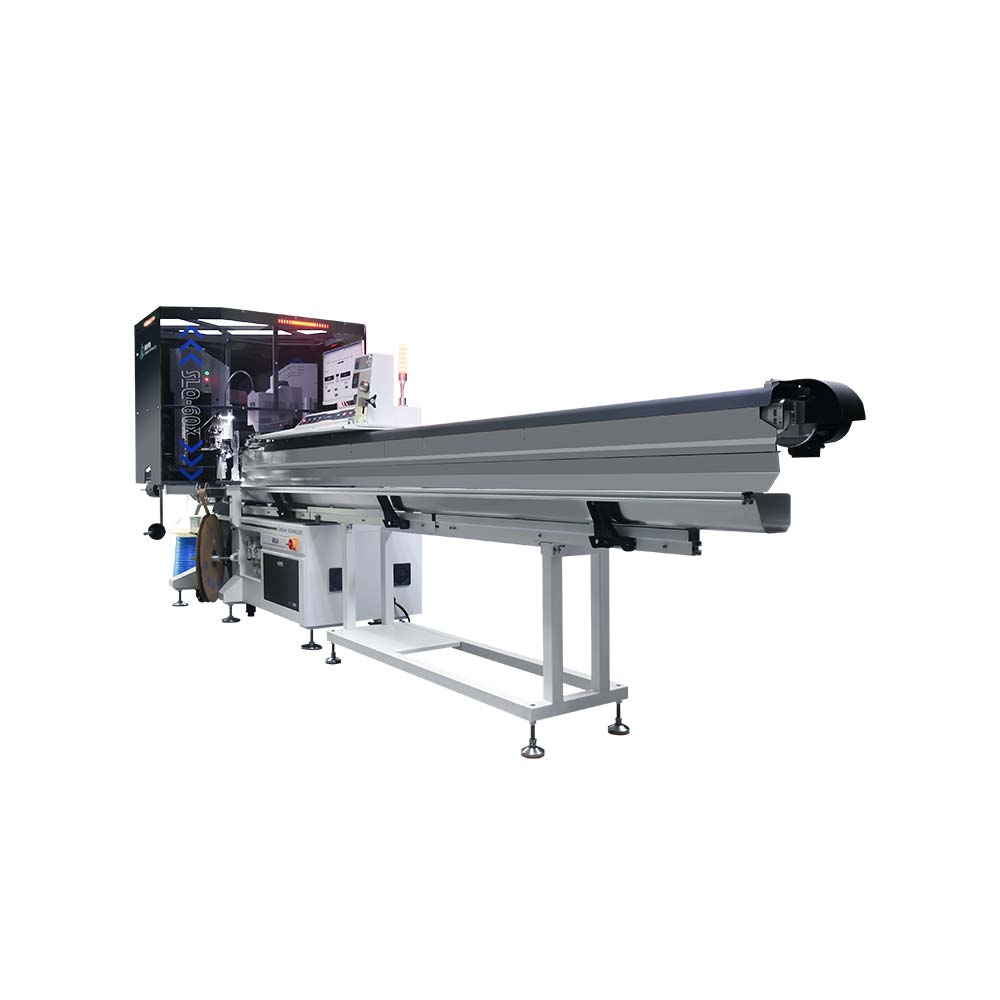

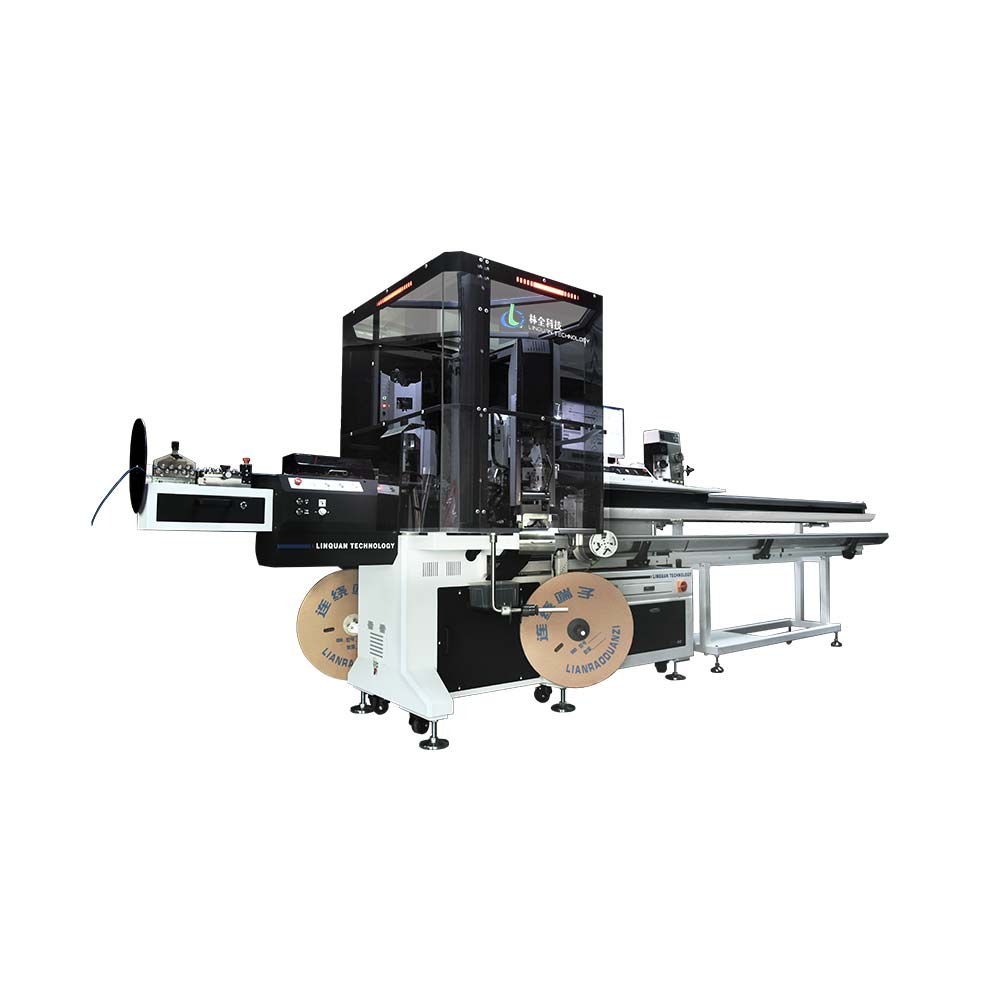

TIGER-60X
Equipment Configuration
With the German high pixel CCD inspection system.
Module(THK), Electric engine(YASKAWA), Pneumatic mould(SMC), Sensor(Omron), CCD Camera(Basler), Reducer(Nidec-Shimpo), PLC(Keyence), Servo drive(Mitsubishi).
The maximum productivity can reach to 3500pcs/hr.
Equipment Function
Double camera CCD visual inspection.
CFM (Crimping Force Monitoring) sensor integrated with every crimping module.
Scrap selecting & unloading, foolproof scrap cutting unit.
Adjust the crimping height on HMI.
Technical Parameters
| Wire Cross-section | 0.13mm² - 2.5mm² (AWG26 - AWG13) | Power | 16 kW |
| 1mm² - 4 mm² (AWG17 - AWG11) | Compressed-air Connection | 0.5-0.7 Mpa | |
| Functions | Automatic wire feeding, fixed length cutting, both-end stripping, both-end crimping, automatic adjustment of crimping height, unloading defective products through CCD inspection | Crimping Capacity | 3 T conditions for achieving maximum crimping force： maximum motor torque adopted and specific settings applied. |
| PPH | 3000-3500pcs | QC Contents | Wire presence, wire overload, terminal presence, terminal overload, stripping visual inspection, terminal crimping visual inspection, crimping force inspection, |
| Wire Feed-in Speed | 0-10m/s | QC Devices | CCD inspection, crimping force monitoring (force sensor), terminal crimping height measuring instrument, terminal pull-back force measuring instrument |
| Min. Length | 60mm | Dimension(mm) | L6130 × W1670 × H1988 |
| Feeding Accuracy | ±(0.2% *L+ 1.0 mm) | Weight | ≈2000kg |
| Stripping Length | 0-15mm±0.1mm（feed blade precise to 0.01mm) | Optional | Lin Quan MES system, seal station, unloading belt length 2m-10m |
| Power Source | 220V / 3 Phase / 50-60 Hz | Power | 16 kW |
