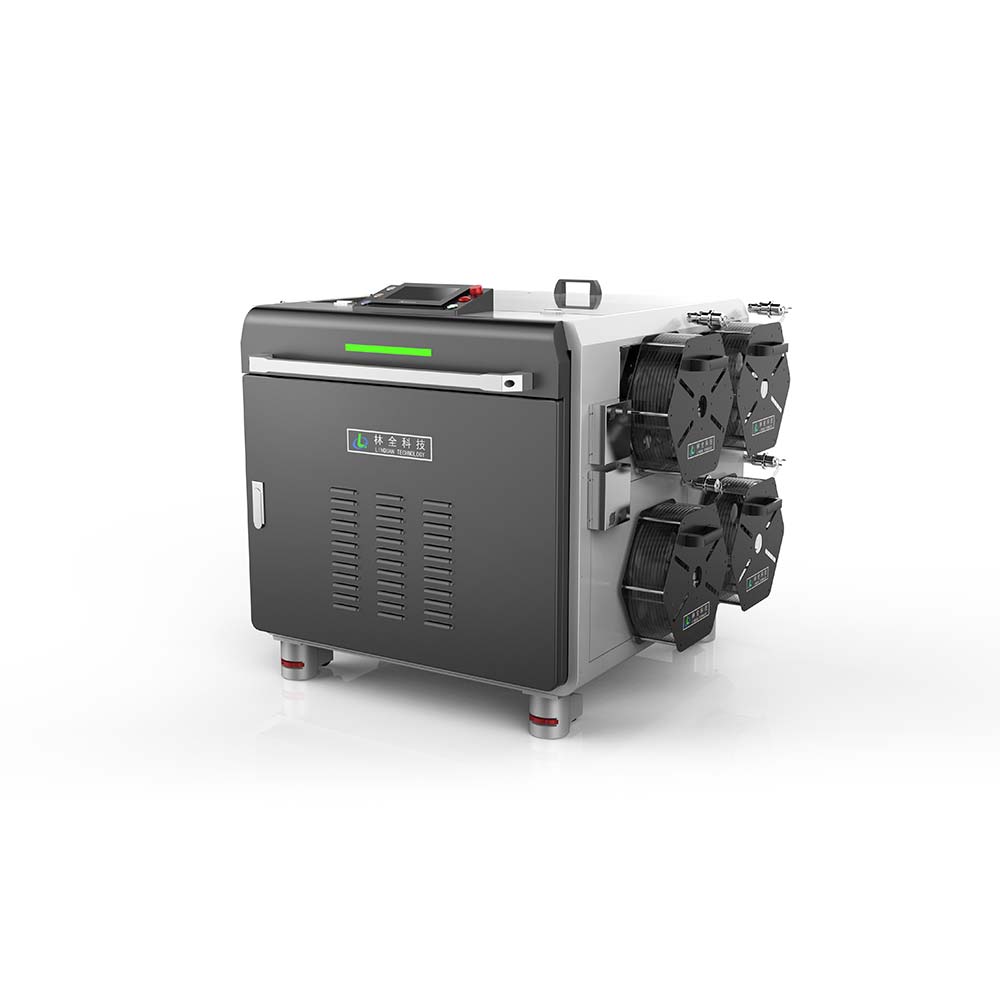

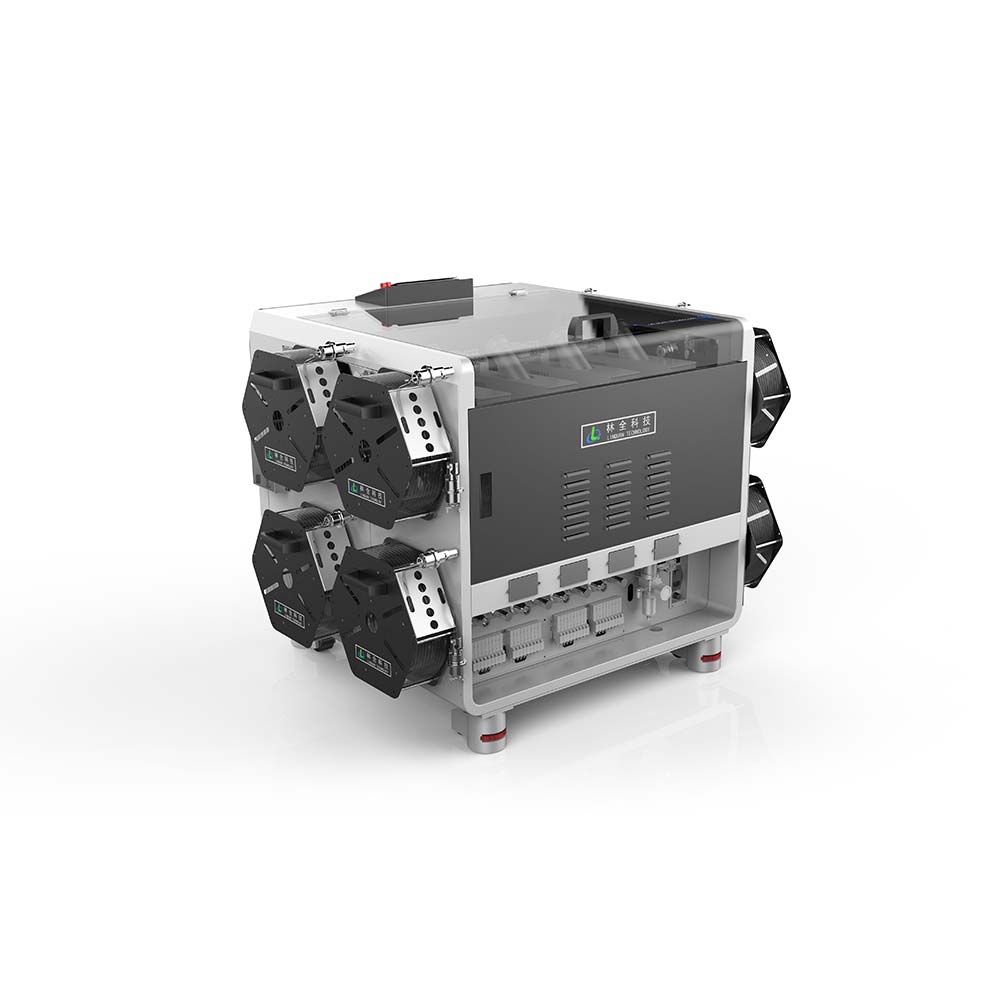

Centralized Pre-feeding Module S201

Flexible space for the auto-delivering machine.
Alarming while the loading plate storage is full.
Hanging the loading plate on the hind-side of the automatic inserting machine.
The delivering machine can serve multiple inserting machine (changing partial component depends on the type of water-proof plug).
Saving costs and spaces.

Technical Parameters

Optional Sets4 seal feeders + 8 seal reeled storagesEfficiency6000pcs/hr
Power Source220V/50HZCompressed Air Connection0.5Mpa-0.7Mpa
Equipment SizeL1150*W1020*H920mmWeight200KG
FunctionAutomatic seal feeding

Seal Station


Max 6 seal stations configuration.
Latest smaller, optimized module design for versatile machine configuration.

Innovative centralized seal feeding technology, efficiency and capital investment of sealing to wire have been significantly optimized.
Centralized pre-feeding module S201 makes maximum 4 seal applicators A201 together with maximum 8 magazines work synchronously.
Creative seal magazine model M201 design achieves compact dimensions of seal feeder and change-over time optimization.

Centralized Pre-feeding Module S201
