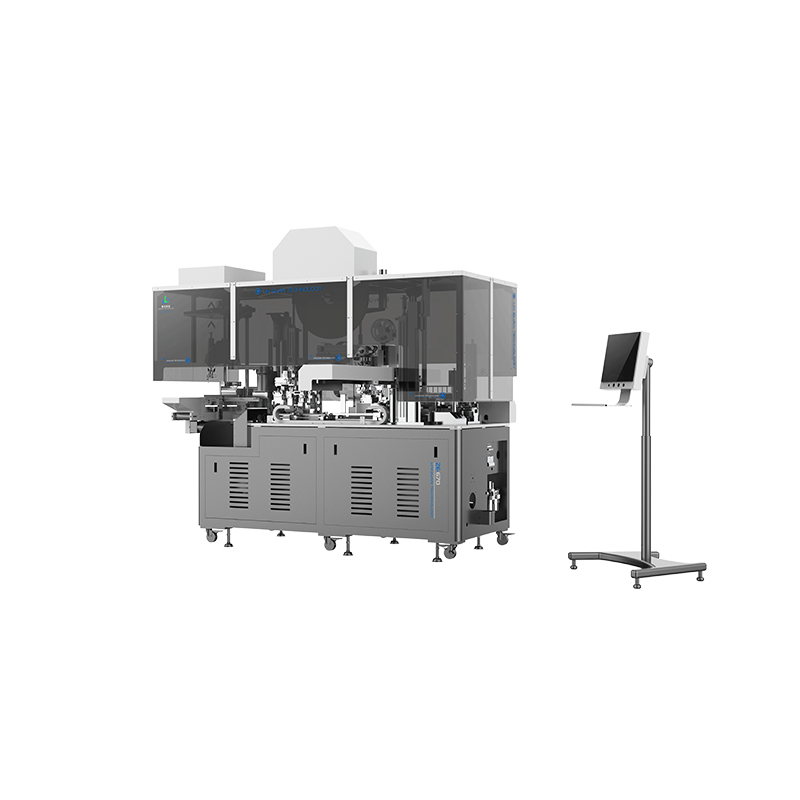

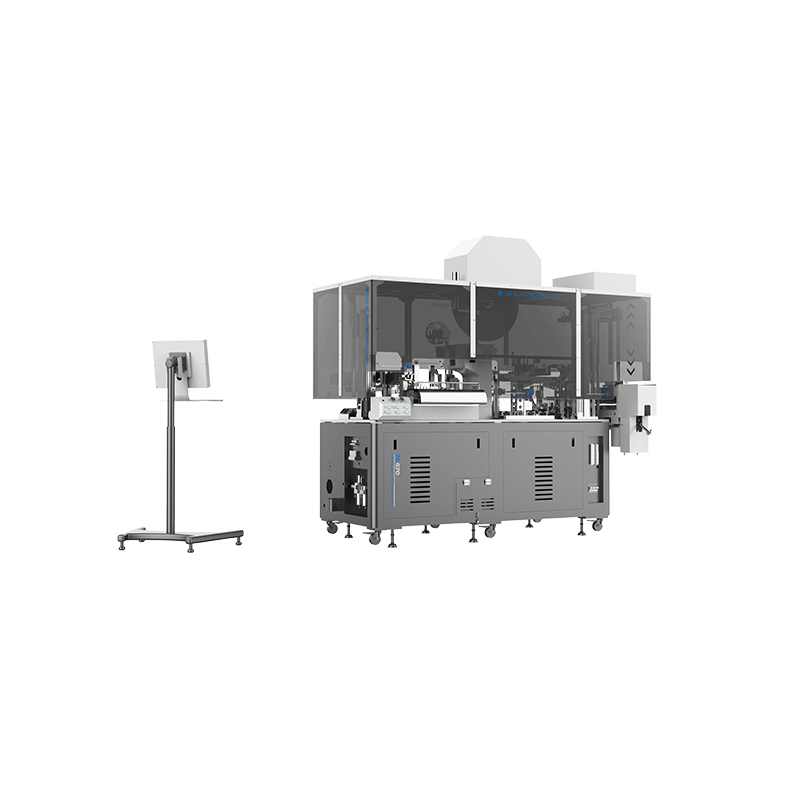

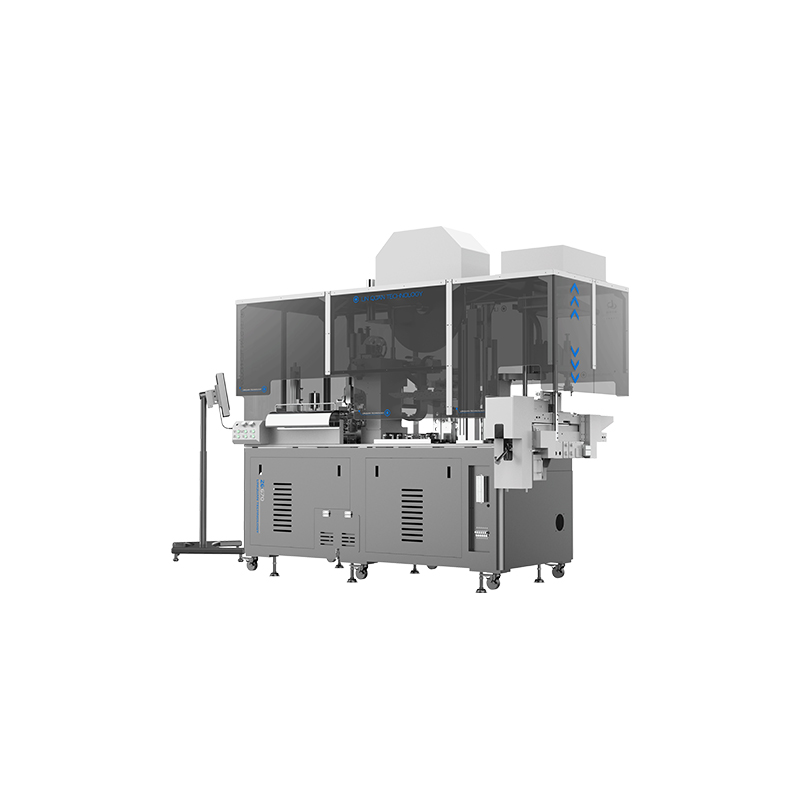

LOONG-850
Equipment Configuration
With the German high pixel CCD inspection system.
The maximum productivity can reach to 1200pcs/hr.
Equipment Function
Wire selector up to 12 different specifications and colors of wires.
CCD visual inspection, CFM (Crimping Force Monitoring), Insertion/Pull-back force detection.
Both-end terminal stripping, Sigle-end housing insertion.
Simultaneous multiple housing insertion.
Connector bowl feeding/Robotic arm feeding.
Technical Parameters
| Wire Cross-section | 0.13mm² - 2.5mm² (AWG26 - AWG13) | Heat Shrink Tubing Specifications | Diameter range: 4-18mm, Length range: 30-60mm, Dual-wall round heat shrink tubing, Auto-fed centered welding. Hopper reloading frequency: ≥3 hours. |
| Stripping Length | 0-25.00mm±0.1mm (feed blade precise to 0.01mm) | Wire Selector | 20 wires |
| Length | Single-ended 165mm, maximum length 3000mm | Crimping Capacity | Rated torque output: 1.2t @ 180° rotation, 3t @ 360° rotation. Combined pressure: 3 tons |
| Feeding Accuracy | ±(0.2% * L+ 1.0 mm) | QC Contents | Wire overload, terminal overload, stripping visual inspection, core wires visual inspection, terminal crimping visual inspection, crimping force inspection, visual inspection of the number of core wires, compound crimping size inspection |
| CT | 2.2-3.1s (It depends on the product) | Production Data Traceability | Wire length, stripping length, core wire inspection photo, terminal appearance inspection photo, crimping force data, product processing information |
| Compressed-air Connection | 0.5~0.7MPA | Raw Material Error-proofing | Wires, waterproof seals, terminals, and molds must undergo barcode scanning for cross-verification to prevent mismatches. |
| Power | 20kW | Functions | Wire Presence Detection, Terminal Presence Verification, Automatic Wire Feeding, Precision Length Cutting, Dual-end Stripping Terminal Crimping, Co-crimping Process, Auto-adjustable Crimp Height, Defective Product Handling: CCD in-line inspection, Automated sorting/rejection, Barcode Matching, Production Data Logging. |
| Power Source | 220V / 3 Phase / 50-60 Hz | Dimension(mm) | L6500 × W2000 × H1900 |
| Wire Feed-in Speed | 0-6m/s | Weight | About 3T |
| Parallel Connection Quantity | Maximum 16 conductors for double-ended connections, Maximum 8 conductors for single-ended connections. | Optional | product labeling, Lin Quan MES system, seal station |
