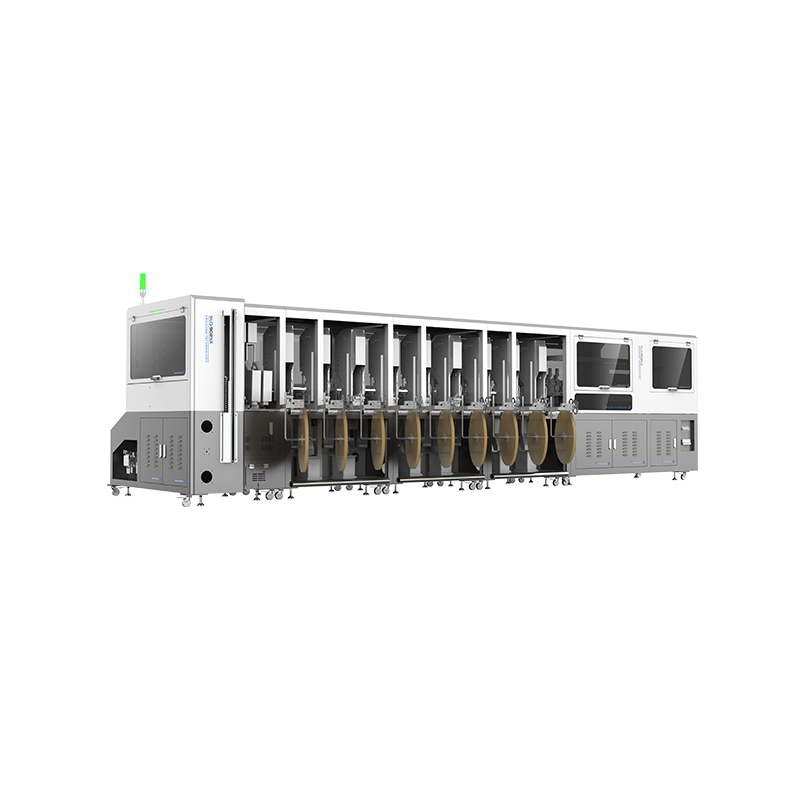

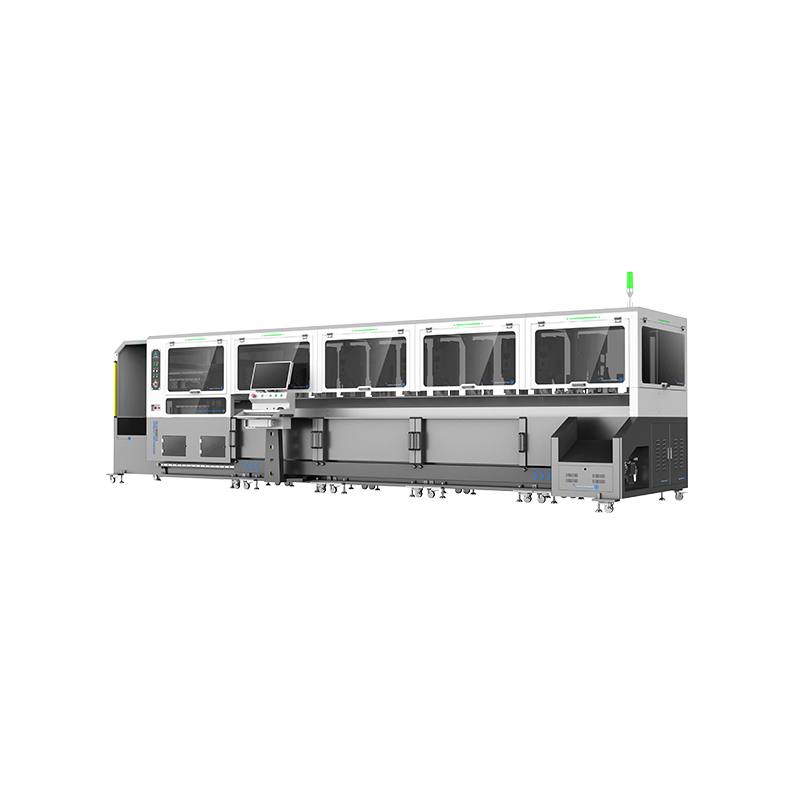

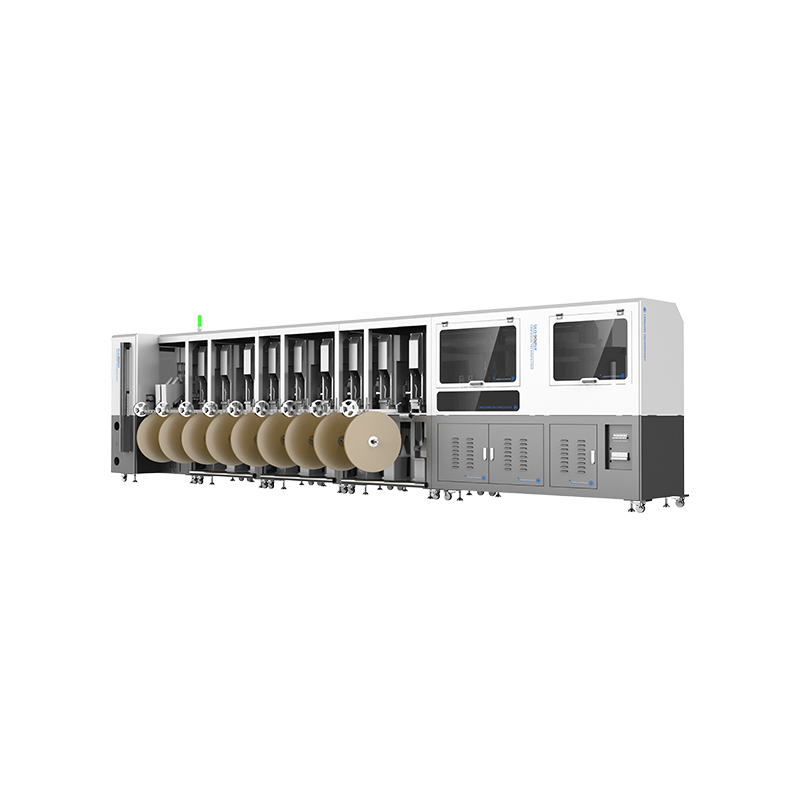

LOONG-860C(902SX)
The Loong Series Harness Manufacturing can produce more wire harnesses of varying degrees of complexity.
It has the functions of Both-end cutting, Both-end stripping, Both-end crimping, Both-end insertion and so on. Reduce production time significantly.
3 or 12 modules can be selected, as required.
The Loong Series is a better choice for miniaturization and increasingly smaller batches.
These machines make it possible to manufacture a range of different wire harnesses.
Technical Parameters
Wire Cross-section | 0.13mm²-4.0mm² | Cutting Length | 450-9999mm |
Power | 10KW | Cutting Precision | Cutting length * 0.02mm |
Power Source | China - 380V / 3 Phase / 50 Hz Canada - 600V / 3 Phase / 60 Hz USA/Japan - 480V / 3 Phase / 60 Hz Mexico/Honduras - 480V / 3 Phase / 60 Hz Europe - 400V / 3 Phase / 50 Hz | Compressed Air Connection | 0.5Mpa |
Stripping Length | Full strip: 0-15mm Half strip: 0-15mm | Stripping Depth | Maximum 3mm |
Wire Selector | Max. 50 wires (Different color & cross-section) | Wire End Storage | Rotary storage unit with a maximum of 30 storage spaces |
Connector Types | 30 kinds of connectors | Crimping Capacity | 3 TON presser |
Efficiency | Both-end crimping and insertion about 1000pcs/hr (Depends on different producing process and the functional module quantity, productivity is different) | Mould Assembly Type | AS40, AS42, AE30(pneumatic mould can be customized) |
QC Contents | Wire presence, Wire overload, Terminal presence, Terminal overload, Stripping and crimping visual monitoring, Crimping force monitoring, Insertion & pull-back force monitoring | QC Devices | CCD inspection modules, Crimping force monitoring (Force sensor), Insertion/Pull-back force monitoring (Force sensor), Terminal crimped height measuring instrument, Terminal pull force measuring instrument |
Functions | Pre-feeding, Wire feeding, Fixed length cutting, Stripping, Both-end crimping, Both-end insertion, Adjusting crimp height on HMI, Unloading defective products through CCD inspection | Optional | Lin Quan MES System, Laser print, Inkjet print, Seal insertion (Max 6 modules), Wire stranding, Max.12 crimping modules (with programmable crimp height), Linear-carrier housing feeding/ Plate-loop conveying housing feeding module (According to customer requirements) |
The loong 860 is designed for one-stop,lean manufacturing of complex wire harness with less middle storage and less operator engagement. Thanks to robust automated design and outstanding degree of flexibility, Loong-860 could easily adapt both sequence and batch production mode.
High speed mass production capability.
Reliable machine performance.
User friendly HMI.
Flexible modular design.
Short changeover time.
Long time data traceability.
MES Traceabilitys.
Outstanding quality control: CCD inspection & CFM sensor.
Excellent compatibility.
Compatible with third-party data (such as MES, SCADA) interface.
Real-time equipment performance and process data.
Easy-to-manage part number list.

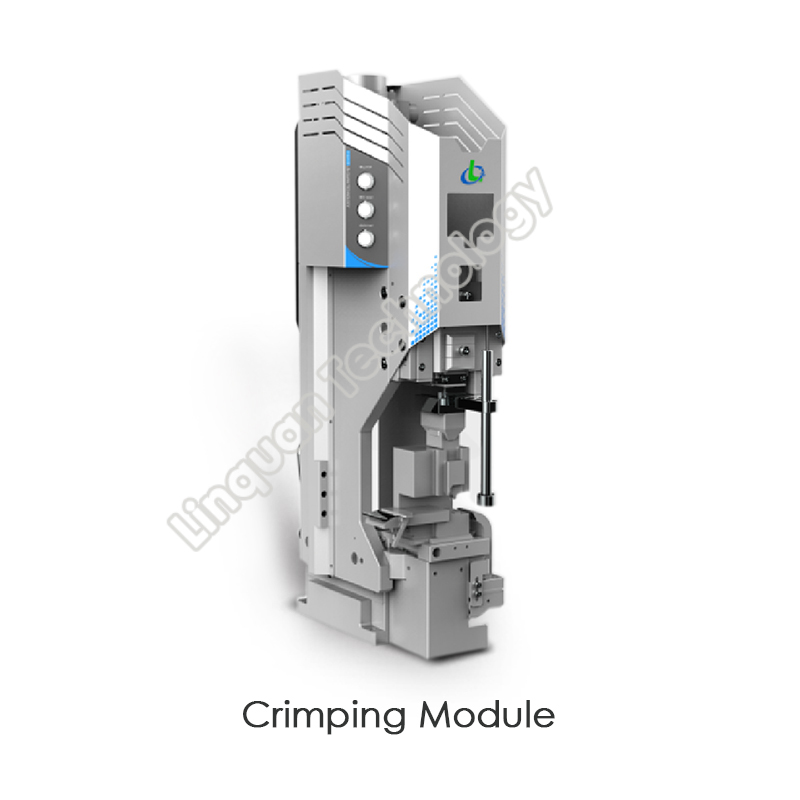

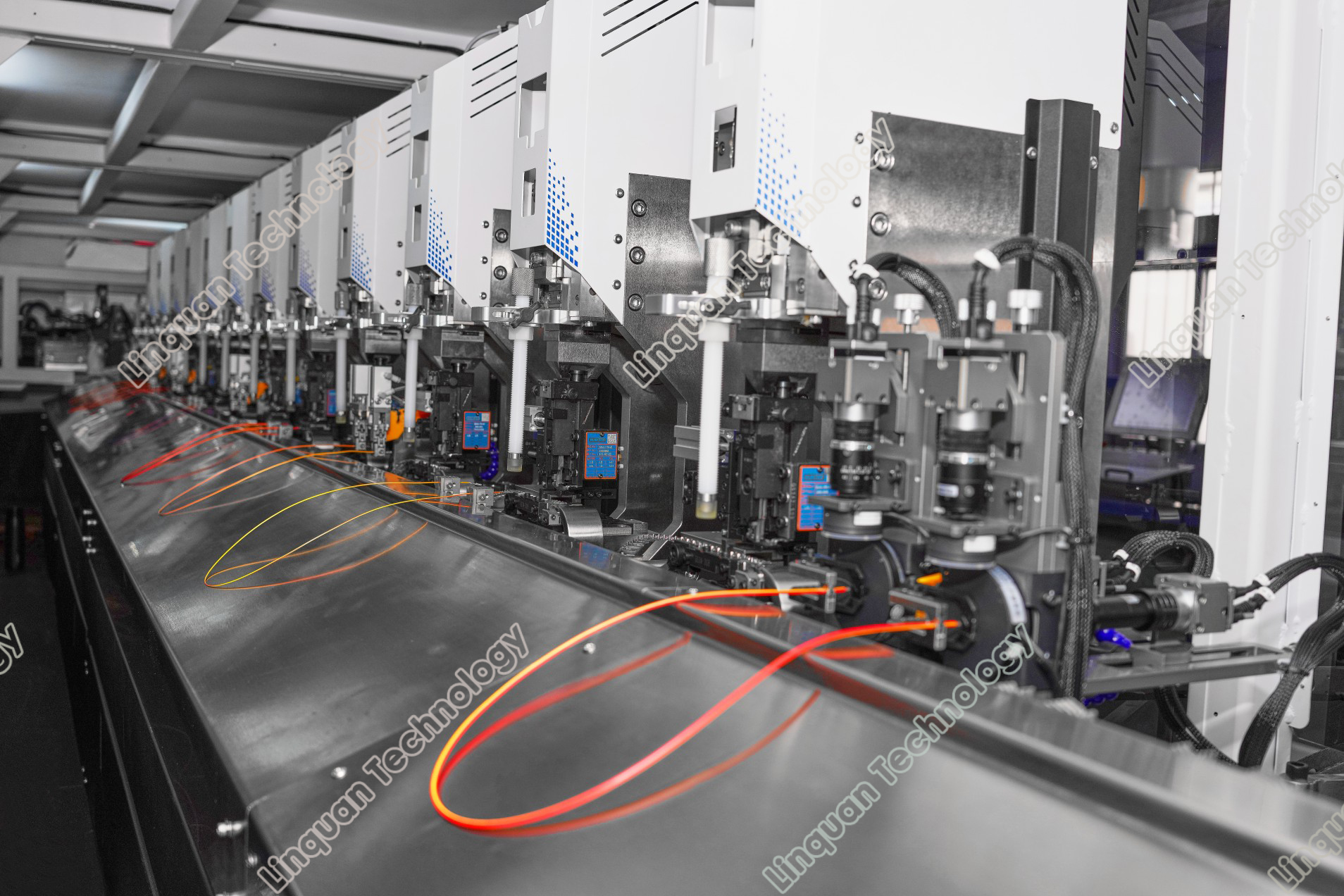

Crimping Module (C202)
Servo-controlled press assures best crimping result.
Integrated with independent crimping force monitoring unit.
Maximum 12 crimping stations could be applied.
Crimping parameters, e.g., crimping height, could be set, adjusted and displayed at HMI.
Wire Wall
Three-dimensional cable storage system saves factory floor space dramatically.

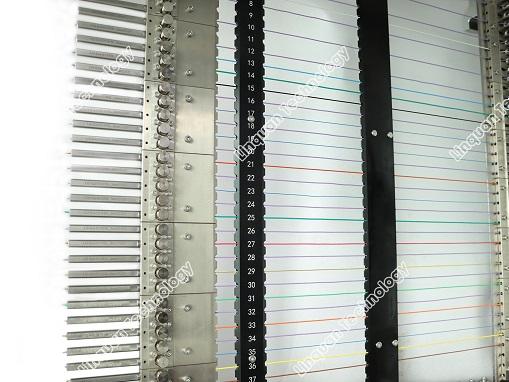

Wire Selector
Compatible for maximum 50 different wires works synchronously.
Tool-free quick guide tube changeover 0.13-4mm²(AWG26-11).

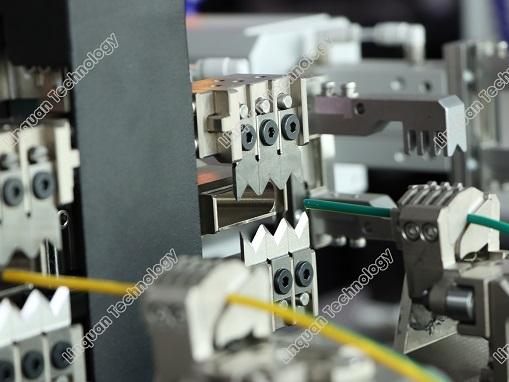

Cutting and Stripping Module
Applying double high-speed blades(V-shape/R-angle blade).
Adjust stripping data with HMI to achieve ultra precision and clean stripping.
Cutting & stripping variety of cross-section wires without complicate change-over step.

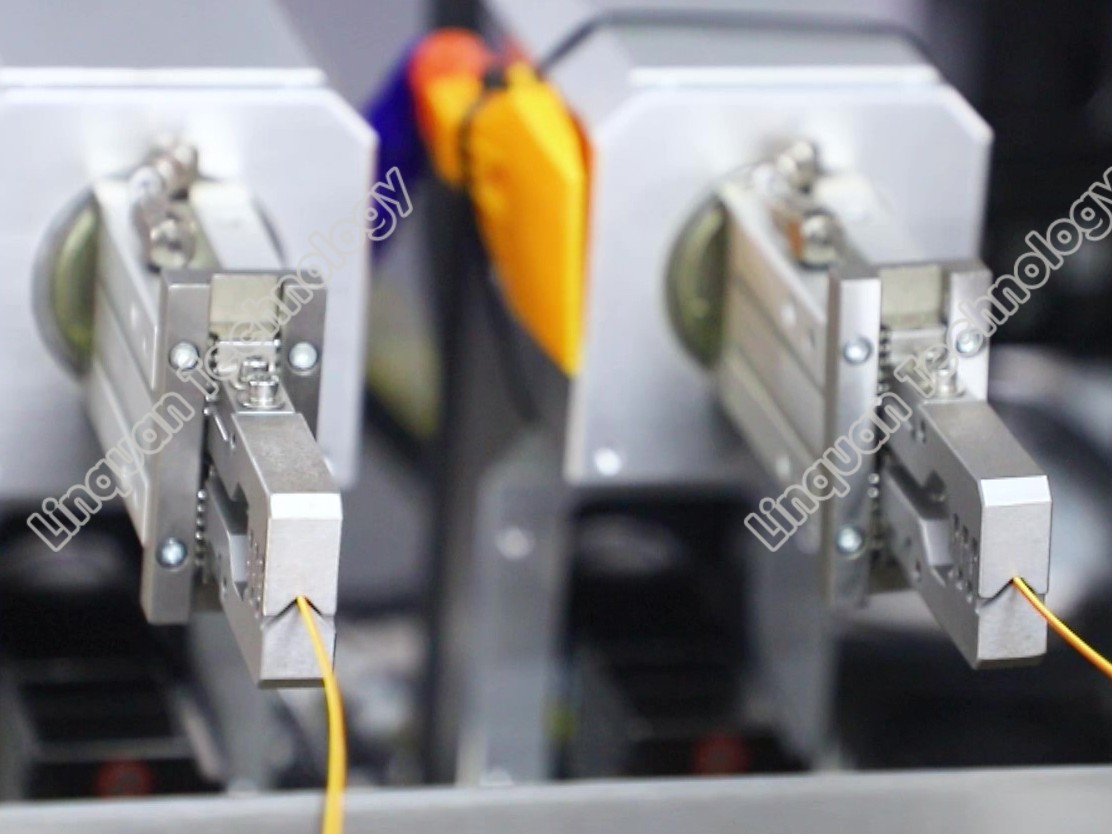

Untwisting Module
Remove wire twists.
Decline scrap rate.

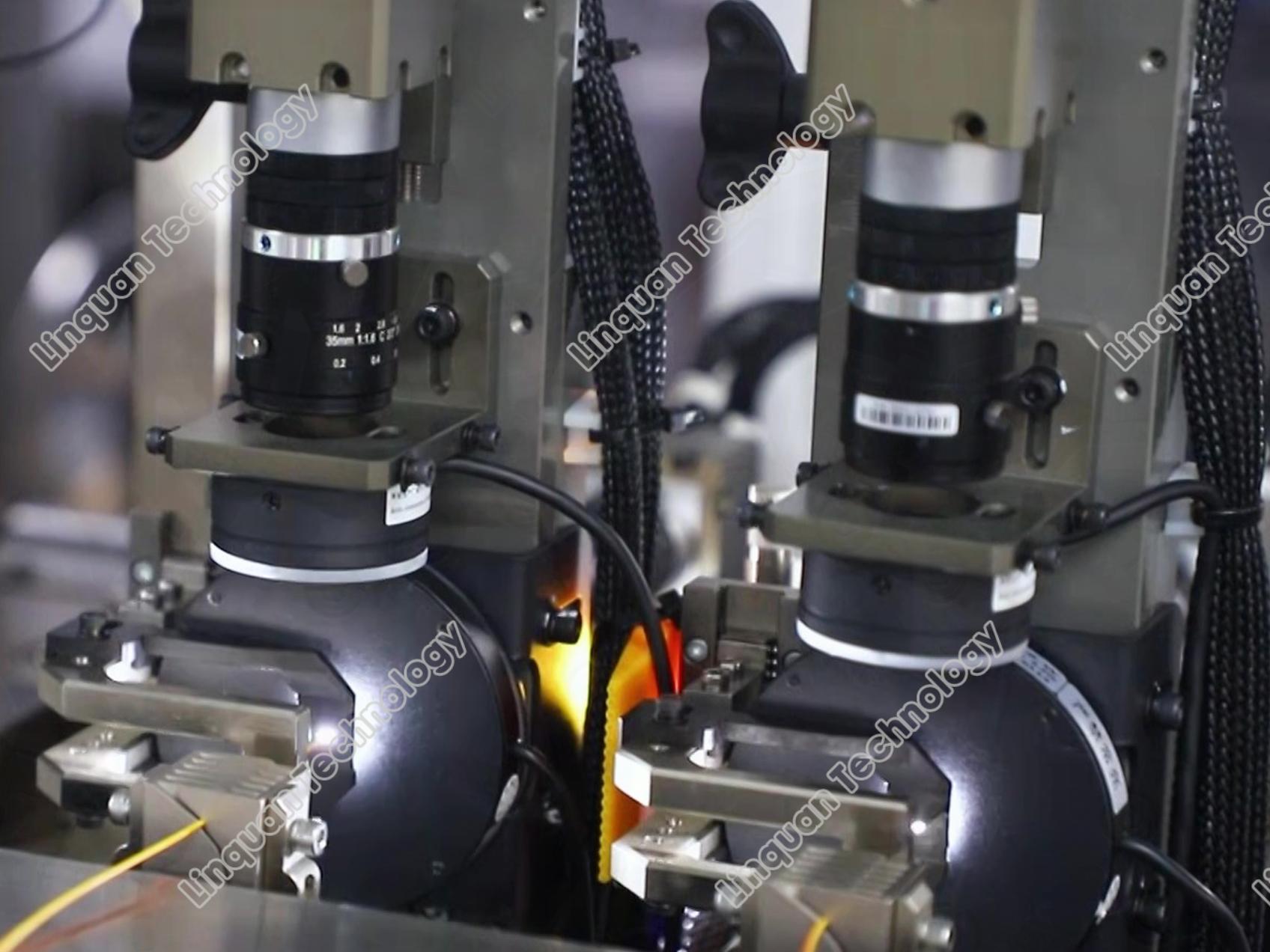

CCD Visual Inspection (TDVM-1)
Integrated QC module, efficient quality monitoring.
Stripping, crimping and center conductor inspection.
Real-time monitoring producing process.
In time detecting scraps.

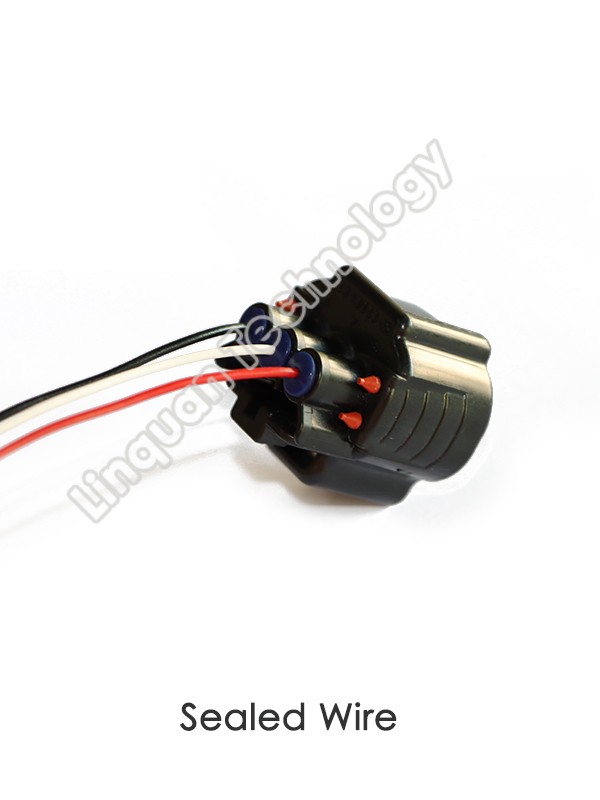

Seal Station (STA201)
Max 6 seal stations configuration.
Latest smaller, optimized module design for versatile machine configuration.
Innovative centralized seal feeding technology, efficiency and capital investment of sealing to wire have been significantly optimized.

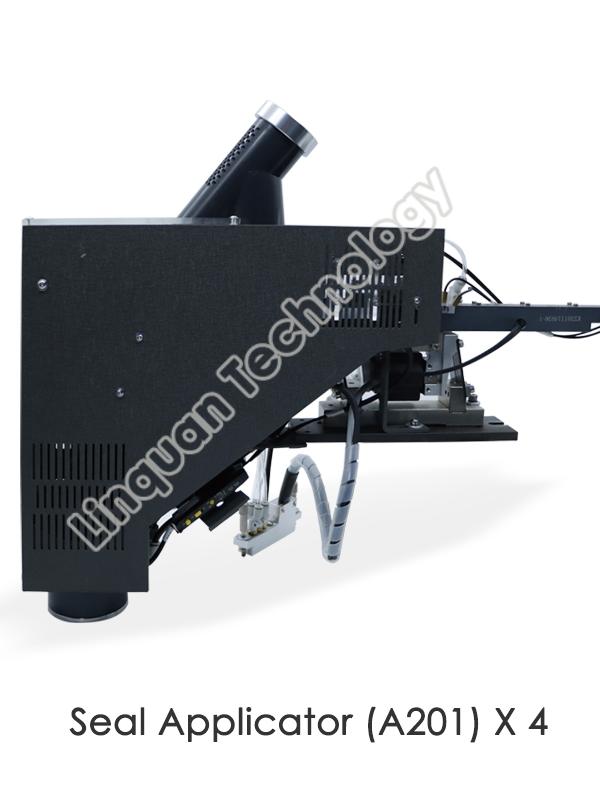

Centralized pre-feeding module S201 makes maximum 4 seal applicators A201 together with maximum 8 magazines work synchronously.

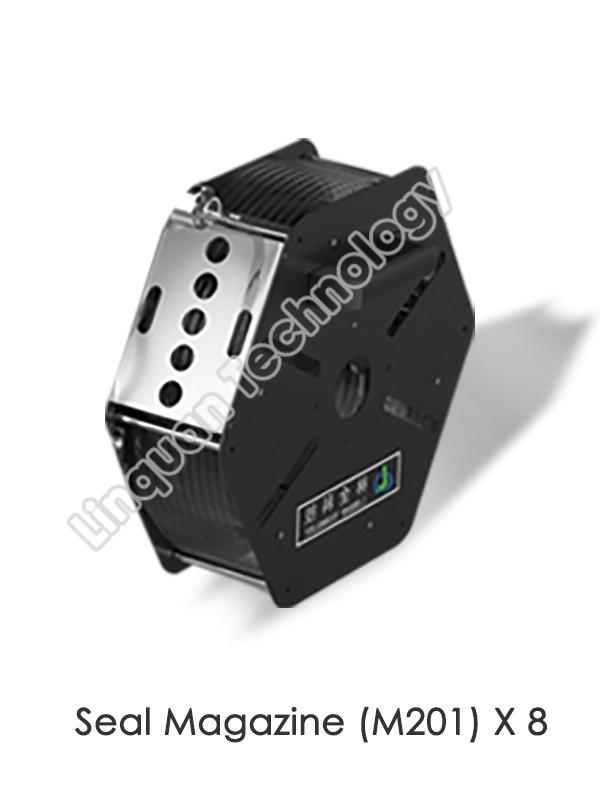

Creative seal magazine model M201 design achieves compact dimensions of seal feeder and change-over time optimization.

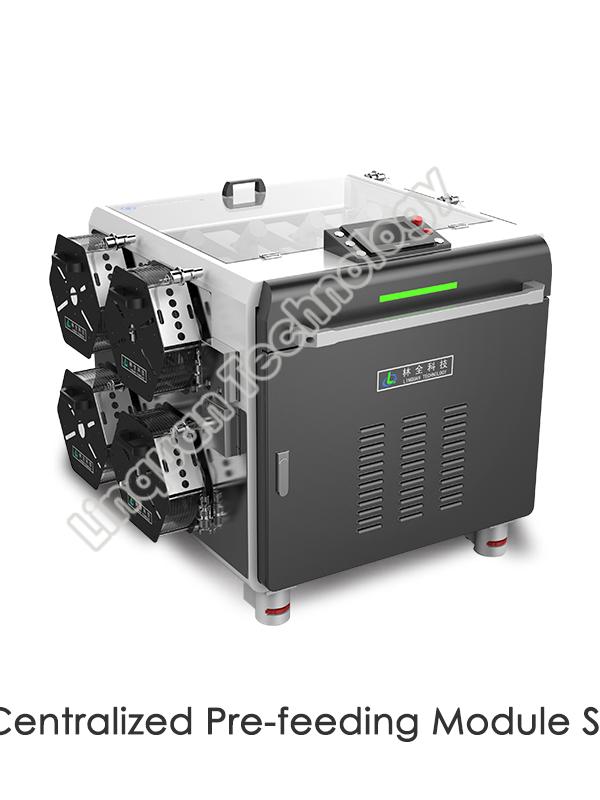

Centralized Pre-feeding Module S201

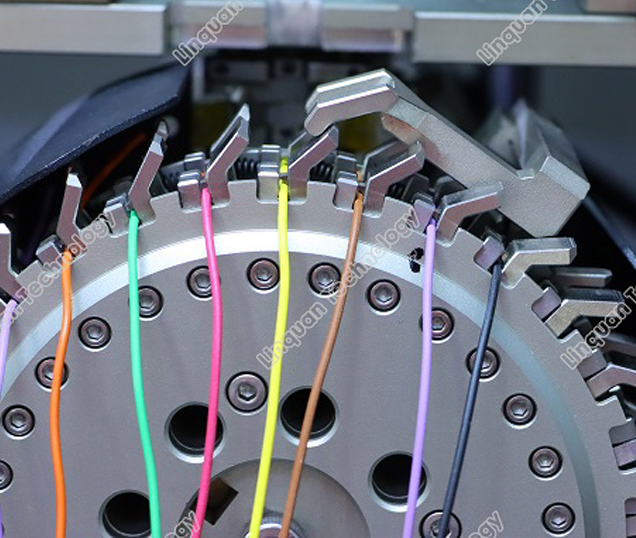

Wire Storage Unit
30 storage positions.
Optimize insertion sequence: from left to right, button to top.
Breakthrough insertion limitations.
Special design for sophisticate wire harnesses.

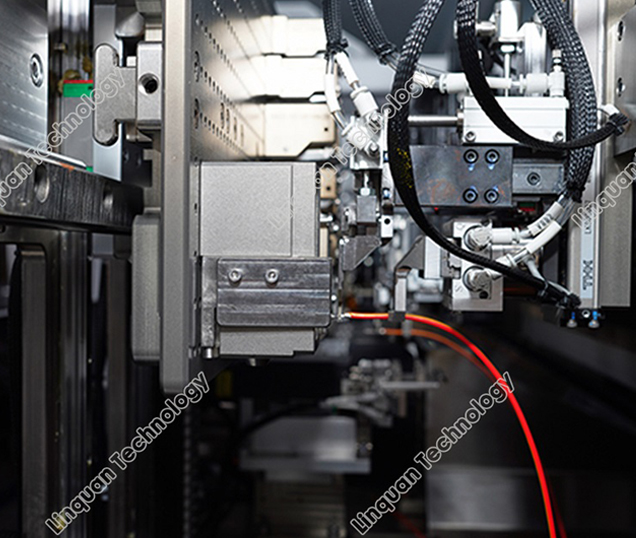

Insertion Module
Dual insertion clamps structure, ensuring insertion accuracy, stability and efficiency.
Segmented insertion process, integrated insertion and pull-back force detection, declining scrap rate.
Plate-loop Conveying Connector Loading Module
Equipped with two conveying plates, efficient connector reloading.
Versatile connectors loading synchronously.
Enable sequence product producing.
Quick & easy manual final product unloading.
